Transport Packaging: Paper Pallets and Industrial Shipping Boxes
Auto Boxes produces corrugated paper pallets and shipping boxes for industrial equipment, for logistics and export. Paper pallets are about 80% lighter than wooden pallets, carry about 1 to 2 tons per pallet, and fall outside the wood packaging that must be fumigated under ISPM-15.
Two Product Groups for Shipping and Export
Paper pallets are made to the size you specify, and boxes are made to the size of the product they carry, from 3-ply up to 5-ply BC flute depending on how they are shipped and stacked at the destination.

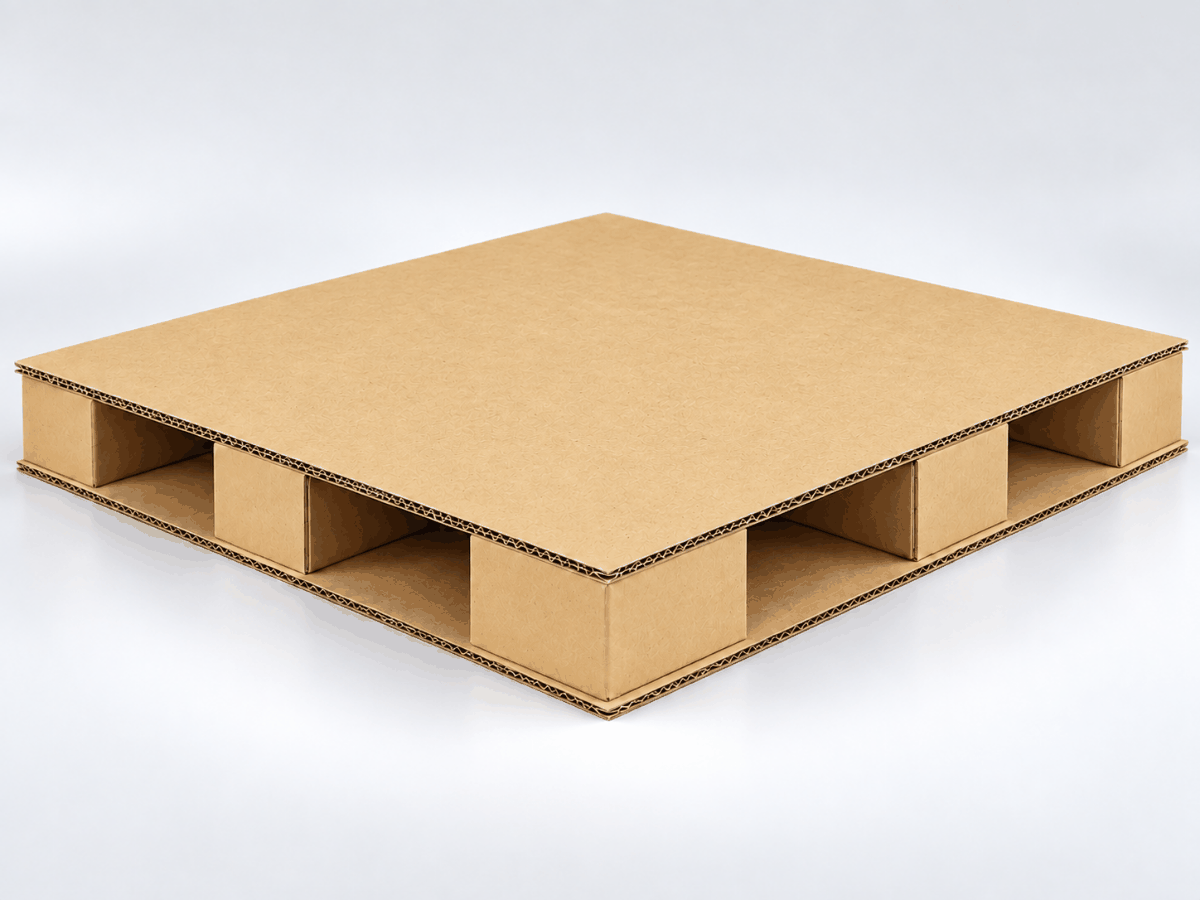

Corrugated Paper Pallets
Corrugated paper pallets are made to the size you specify and carry about 1 to 2 tons per pallet, replacing wooden pallets for both sea and air freight. The actual load for each job depends on the product on the pallet, how it is arranged, and how the pallet is lifted and moved. Our specialists assess this before every quotation.
| Item | Corrugated paper pallet |
|---|---|
| Pallet weight | About 80% lighter than a wooden pallet, which also lowers the total weight of the container |
| Load capacity | About 1 to 2 tons per pallet, assessed for each job based on the product and how it is arranged |
| Export fumigation | Outside the wood packaging that must be fumigated under ISPM-15 |
| Disposal after use | A fiber-based material that goes through normal paper recycling, with no need to separate parts first |
| Conditions of use | Less resistant to long-term moisture than wooden pallets. For outdoor use or storage in continuously damp areas, tell us the site conditions so our team can assess first |
Pallet pads, layer sheets and slip sheets used with pallets belong to the cut-to-size corrugated sheet group. View corrugated sheet details

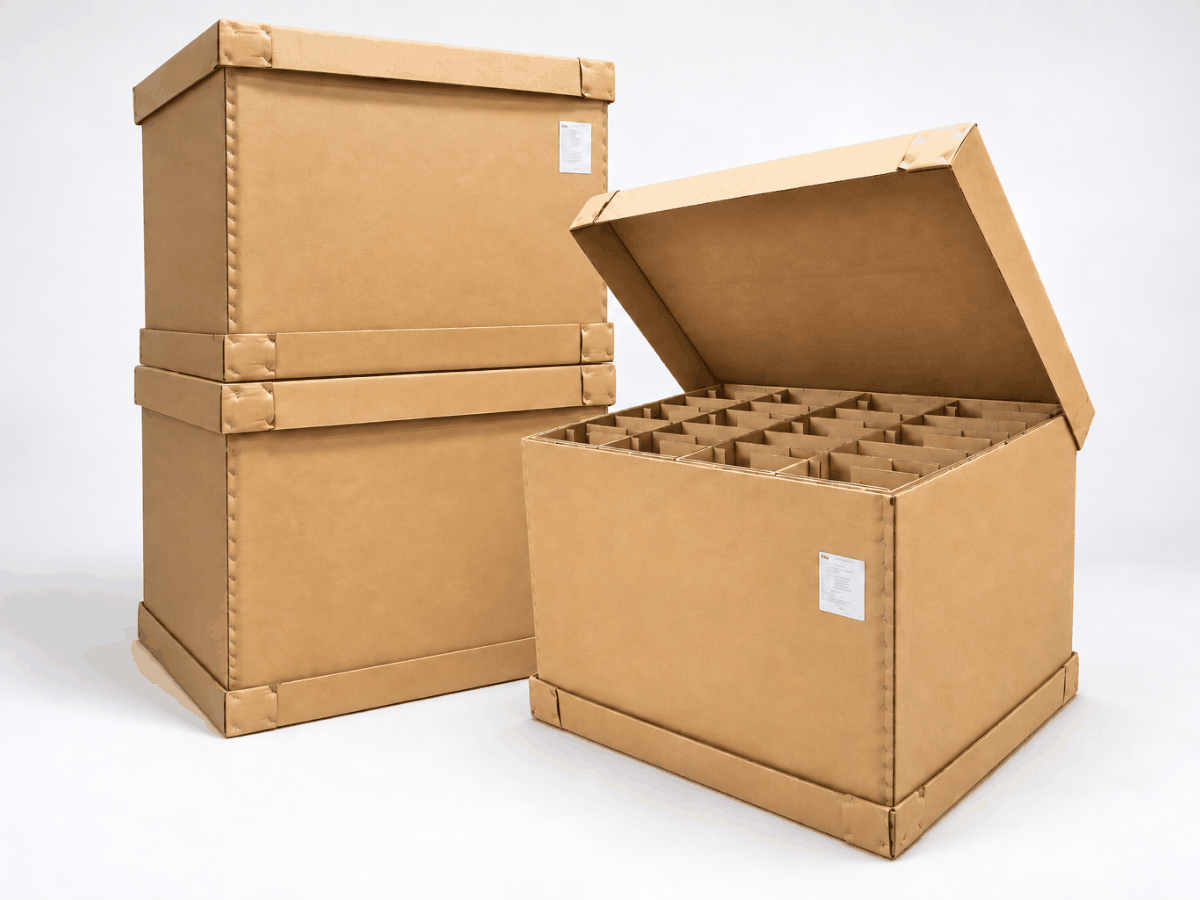

Shipping Boxes for Industrial Equipment and Parts
Boxes in this group are made to the size of the equipment or parts they carry. The most common structure is 5-ply BC flute, 7 mm thick, which offers the highest vertical compression and impact resistance among the flutes the factory produces. Jobs that need less thickness but still have to stack use 3-ply C flute, 4 mm thick.
Large Shipping Cases (Corrugated Crates)
Large 5-ply boxes for equipment and parts packed in large quantities, made to your specified size and delivered flat. For boxes taller than 800 mm, our production team checks feasibility before quoting.
Multi-Piece Boxes and Large Components for Export
Jobs that are wider than the machine width when laid flat are produced as multi-piece boxes, which add joints and an assembly charge compared with a one-piece box. Minimum order is 100 sets.
Export Boxes with Test Criteria Set by the Destination
For jobs where the end customer specifies test criteria with the order, the Technical Service team builds those criteria into the structural design from the start, then makes a real sample box for inspection before production. For dangerous goods that must ship in UN-certified packaging, our team coordinates the testing and UN marking for your box design.
Boxes in this group can be joined in two ways. Gluing is standard, while stitching is used for heavy-duty jobs and sea export. Both are delivered flat.
Choosing a Spec by Shipping Route
Grade and flute selection starts with the product, how it is shipped, and how it is stored and stacked at the destination, with weight per box as one of the variables in the calculation. This table gives starting values to open the conversation. Our specialists calculate the actual spec for each job.
| Route | Main risk | Recommended grade | Recommended flute |
|---|---|---|---|
| Sea | Moisture building up in the container over several weeks, and stacking pressure throughout the voyage | KA or KH | BC or C |
| Air | Package size affects freight cost through dimensional weight | KK or KA, 125 to 150 GSM | BE or B |
| Domestic | Stacking on pallets and in warehouses | KK | B or C |
| Cold rooms and temperature control | Condensation on the box surface | KH primarily | BC or C, waterproof coating available |
| High stacking in warehouses | Vertical load building up with the number of layers and storage time | KA | C or BC, consider an FOL structure |
For every grade, grammage, flute, minimum quantity and lead time the factory offers, see the box and corrugated sheet specifications page.
What Makes Sea and Air Specs Different
Sea Freight
Goods stay in a container for several weeks and carry stacking pressure throughout the voyage, so the spec focuses on three things.
- 5-ply BC flute, 7 mm thick, with the highest vertical compression resistance among the flutes the factory produces.
- KH grade has a moisture-resistant additive in the pulp and is used for jobs with constant moisture, while KA is used where moisture is moderate.
- Partitions and pads inside the box can be added to fit the product shape. View assembled and protective packaging
Air Freight
Air freight is charged by dimensional weight, calculated from the package size, so the spec focuses on three things.
- BE flute at 4 mm or B flute at 3 mm keeps the external size of the box smaller than BC at 7 mm.
- KK or KA grade at 125 to 150 grammage, the lightest range the factory produces in these two grades.
- No box size yet? Send us the product size, and our team will measure and design a structure that fits the product, free of charge.
Destination Requirements That Affect Packaging
ISPM-15
ISPM-15 is the international standard that requires wood packaging used in international trade to be treated against pests and marked with a stamp. Paper pallets are not wood packaging, so they do not need this step.
EU PPWR
PPWR (Packaging and Packaging Waste Regulation), Regulation (EU) 2025/40, has applied since 12 August 2026, with further requirements phased in over time. Its design-for-recycling criteria become mandatory from 1 January 2030. Corrugated board is a fiber-based material that goes through normal paper recycling, in line with the direction the regulation sets. Assessing conformity for each product is a step the exporter carries out together with the importer.
FSC Paper
The factory holds FSC Chain of Custody certification. If you need FSC paper, include it with your spec. Our team checks the available grades and certificate conditions before confirming the order.
Every specification the factory can produce
Grades, grammages, flutes, minimum quantities and lead times, with the production conditions attached to each value.
Information for Assessment and Production Lead Time
Our team assesses the structure from the information below. If you do not have all of it yet, send what you have first.
- Shipping method: sea, air or domestic
- The product and how it is stored and stacked at the destination
- Size: width x length x height, stating whether internal or external. If you do not have a box size yet, send the product size instead.
- Quantity per lot and monthly order plan
- Printing: number of colors and number of sides
| Step | Lead time |
|---|---|
| Quotation | 3 to 5 business days after complete information |
| Real sample box | 3 to 7 business days after the structural design is complete and priced |
| New production | 10 to 14 business days after Print Master confirmation and payment |
| Repeat production of the same design | 7 to 10 business days |
Minimum orders for this group: 300 unprinted slotted boxes (RSC), 500 Flexo-printed boxes, and 100 sets for multi-piece boxes and large export components.
Nationwide delivery. Freight is estimated by destination and quantity and stated on the quotation, or you can collect from our Bang Pakong factory.
Request a Quotation for Transport Packaging
Tell us the shipping method, the product, and the quantity per order. Our team assesses the structure that suits the stacking and shipping distance, then prepares a quotation within 3 to 5 business days of receiving complete information.
FAQ: Transport Packaging
PPWR is the EU packaging regulation, Regulation (EU) 2025/40. It has applied since 12 August 2026, with further requirements phased in over time, and its design-for-recycling criteria become mandatory from 1 January 2030. Corrugated board goes through normal paper recycling. Assessing conformity for each product is done by the exporter together with the importer.
No. ISPM-15 applies to wood packaging. Paper pallets are not in that group, so they need no fumigation and no stamp.
About 1 to 2 tons per pallet. The actual load depends on the product on the pallet, how it is arranged, and how the pallet is lifted and moved, and our specialists assess this before quoting. For outdoor use or continuous storage in damp areas, tell us the site conditions as well, because paper pallets are less resistant to long-term moisture than wooden pallets.
The starting point is KA or KH grade with BC or C flute. KH has a moisture-resistant additive in the pulp, so it is used for jobs with constant moisture. The actual spec is assessed from the product, how it is shipped, and how it is stacked at the destination.
300 unprinted slotted boxes, 500 Flexo-printed boxes, and 100 sets for multi-piece boxes and large export components. If you need less, send us the details. In some cases the job can be combined with another production run.
Yes. The Technical Service team turns the criteria set by the destination into conditions for the structural design, then makes a real sample box for inspection before production.
Yes. Our team coordinates the testing and UN marking for your box design. When you request a quotation, include the UN number of your product and a sample of the inner packaging you actually use. Cost and timing are assessed case by case.
