Corrugated Sheets Cut to Size: Flat Sheets, Die-Cut Sheets and Rolls Made to Your Spec
Auto Boxes produces corrugated sheets cut to the size you specify and delivers them flat, ready to use. You can order flat sheets cut to a rectangle of any size, die-cut sheets punched into other shapes or scored with fold lines to your drawing, and rolls for wrapping and cushioning.
Three Formats of Corrugated Sheet
Choose any grade and flute the factory produces, and mix different grades for the outer and inner liners. Minimum order is 300 meters, with a minimum total width of 36 inches (920 mm). Sheets are made under an ISO 9001 quality system at our Bang Pakong factory in Chachoengsao, and FSC paper is available with the claim stated on your documents.
Flat Sheets Cut to Size
Corrugated sheets cut to the width and length you specify. This is the most commonly ordered format. Box plants convert them into boxes for their own customers, while factories and warehouses use them directly as pads, layer sheets and floor covering.
- Sheet formStraight edges, no extra folds or cuts
- DeliveryStacked on pallets, ready to go straight into your line
- Upfront costNo cutting die cost
Die-Cut Sheets
Sheets passed through a cutting die to get a specific shape, with holes, slots or scored fold lines to your drawing, then delivered flat as usual. Used when a rectangle will not do, such as sheets with cut-outs that match the product shape or sheets with ventilation holes.
- Sheet formCustom shape to your drawing
- DeliveryFlat sheets to your drawing
- Upfront costCutting die cost, paid once on the first order and not charged again on repeat orders of the same design
2-Ply Sheets and Rolls
A 2-ply sheet has flutes on one side bonded to a single liner, so it is light, flexible and bends easily around delicate surfaces or curved shapes. It is used to wrap products and as outer cushioning in many types of work.
- Sheet formFlutes on one side, bonded to one liner
- DeliveryRolls, standard width 48 inches, about 40 kg per roll
- Starts from40 kg
Every specification the factory can produce
Grades, grammages, flutes, minimum quantities and lead times, with the production conditions attached to each value.
Who Orders Corrugated Sheets
Group 1: Box and packaging manufacturers
Plants that buy sheets to convert themselves look for a supplier that keeps their line running. Three questions these customers always ask first: is quality consistent from lot to lot, does delivery arrive on the day promised, and is there a full choice of grades and flutes?
- Consistent quality in every lot Paper with varying quality forces a machine reset with every delivery. Auto Boxes controls every step of production under ISO 9001, so the spec on a repeat order matches the first lot.
- Delivery date confirmed before production Our team confirms the delivery date within 24 hours of receiving the order and notifies you right away if the plan has to change, so your planning team can schedule machines and staff without building in extra buffer.
- Every grade and flute in one place Handle a wide range of orders from a single supplier, with less sourcing, price comparison and incoming inspection across multiple vendors.
Group 2: Factories, warehouses and logistics businesses
This group uses corrugated sheets directly in production, storage and shipping without forming them into boxes. Three things to agree on before opening an order: the actual size used, the quantity per production run, and the thickness the job needs.
- Cut to the size you actually use Specify any width and length you need, with no standard sizes to choose from, so sheets fit your pallets, shelves or containers. Jobs that need cut-outs or holes can be ordered as die-cut sheets in the same order.
- Minimum order from 300 meters Minimum total width is 36 inches (920 mm). Only 2-ply rolls are sold by weight, with a 40 kg minimum. Purchasing teams can plan order cycles ahead from monthly usage.

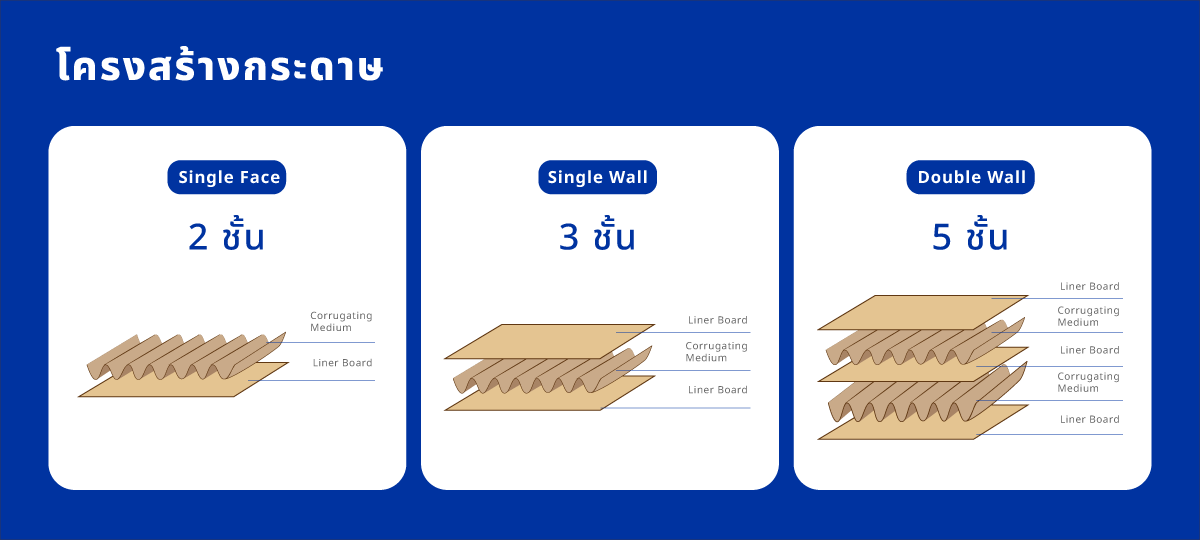

- Choose thickness by application 2-ply, 3-ply and 5-ply structures are all available. If you are not sure which grade or thickness the job needs, send us the application, how the sheets are stored and stacked, and the load they must carry, and our team will compare the options before production.
Most Common Sheet Applications
Pallet pads and top sheets
Placed on the pallet before loading and over the top layer, protecting against moisture, dust and dirt during shipping and storage. Ordered to the size of the pallet deck you use. Common sizes match a standard pallet deck or extend slightly beyond it to cover overhanging goods.
Pallet layer sheets
Placed between layers of stacked goods on a pallet to spread weight evenly, reduce rubbing between products and make the load more stable when moved. Sized to the pallet deck as well.
Slip sheets
High-density sheets that replace wooden pallets under the goods. They are much lighter, need no ISPM-15 fumigation for export, and are recyclable, meeting the environmental requirements of overseas customers.
Floor and surface protection on site
Laid on floors during installation, interior fit-out or construction work to prevent scratches and paint drips. They withstand foot traffic through the day and are easy to clear away when the job is done. 2-ply sheets are popular here because they can be rolled out continuously to fit the area.
Warehouse separators and scratch protection
Placed between products stacked on shelves or in bins, keeping surfaces from scuffing as items are picked and moved. Usage is steady every month, so these are often ordered regularly together with pallet pads.
Die-cut sheets to your drawing
Sheets punched to shape and scored with fold lines, delivered flat. What you use them for is up to you. The factory produces to the drawing you provide.
Looking for parts that come ready to assemble? Partitions, cushioning fitted to the product shape, corner protectors, box liners, and tray and lid sets belong to the assembled and protective packaging group, because they are designed around the actual product and need a sample for testing before production.
View assembled and protective packaging
Sheet Order Conditions
- Minimum order 3-ply and 5-ply sheets from 300 meters, with a minimum total width of 36 inches (920 mm). 2-ply rolls from 40 kg. If you need less than this, send the details for our team to review first. In many cases the job can be scheduled together with other orders.
- Size Cut to the size you actually use. Give width by length in centimeters or inches. For extra-large sizes, our team checks with production before confirming price and delivery date.
- Rolls (2-ply) Standard width 48 inches.
- Delivery Nationwide delivery. Freight is estimated by destination and quantity and stated on the quotation, or you can collect from our Bang Pakong factory.
- Quotation 3 to 5 business days after we receive complete requirements. We need the size, quantity, required grade and flute or the intended application, and the date you need the goods.
Why Factories Order Sheets from Auto Boxes
A sheet line with its own queue
Auto Boxes has sold corrugated sheets as a product in their own right from the start, so sheet jobs run on a separate machine queue from box jobs. Sheet orders do not wait for a gap in box converting.
Mix grades in a single sheet
The outer and inner liners can be different grades. This is useful when the visible side needs to look good while the hidden side keeps costs down. Our team works out which combination gives the strength you need at a lower cost.
Our specialists compare options before you order
Send us the product, stacking method, operating environment and the load the sheet must carry. Our specialists compare the options on both strength and cost before you decide.
Standards you can verify
An ISO 9001 quality system and FSC Chain of Custody for jobs where the end customer needs documentation of the paper source.
Corrugated Sheet Delivery Nationwide from Bang Pakong
The Auto Boxes factory is in Bang Pakong, Chachoengsao. We deliver nationwide and coordinate easily with factories in EEC industrial estates, using 6-wheel and 10-wheel trucks.
- Chachoengsao - Wellgrow, Gateway City, TFD, Bang Pakong
- Chonburi - Amata City, Eastern Seaboard, WHA, Phan Thong, Si Racha, Laem Chabang
- Rayong - Amata City Rayong, Map Ta Phut
- Prachinburi - 304, Kabin Buri
- East Bangkok - Lat Krabang, Suwinthawong
FAQ: Corrugated Sheets
3-ply and 5-ply corrugated sheets start at 300 meters, with a minimum total width of 36 inches (920 mm). 2-ply rolls start at 40 kg. If you need less than this, send us the details first. In many cases the job can be scheduled together with other orders.
Yes. Box plants and industrial factories order this way regularly. Give us the width and length and the grade and flute you need, or describe the application and let our team recommend a spec.
Board is charged by area at the same rate for both. The difference is that die-cut sheets add a cutting die cost, paid once when the design is first made. The cost depends on the size and complexity of the shape, so our team prices each design and states it on the quotation. Repeat orders of the same design reuse the same cutting die with no further charge.
They are ready to use indoors and for normal shipping. For continuous exposure to moisture, such as cold rooms or outdoor storage, tell us about the actual environment. For sheets, the most direct solution is to move to a grade with better moisture resistance, and our team will compare the options before you decide.
Sheets are cut to size for each customer, so there are no ready-made samples to send. Instead, tell us the grade, grammage and flute you are interested in, and our team will explain their properties and compare them with similar jobs. For die-cut work, our team can cut a sample to your drawing for you to try before production.
Request a Corrugated Sheet Quotation Directly from the Factory
Tell us the width and length, the quantity you need, and how the sheets will be used. Our team prepares a quotation and sends it within 3 to 5 business days once we have complete information.
